MA7100HP 7.2-channel 8K High Performance AV Receiver

Product Overview

The JBL MA7100HP high-performance AV Receiver offers exceptional realism, enhancing the home cinema experience. Crafted with a dedication to music and film, it brings both to life with authentic high fidelity.

Key Features

• HDMI eARC: Yes
• HDMI Audio Return Channel: Yes
• 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz): 3
• HDMI 2.1 enhanced gaming features: Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
• HDR 10+, Dolby Vision: Yes , Yes
• File format: MP3 / MPEG-4 AAC
• Pure Analog: Yes

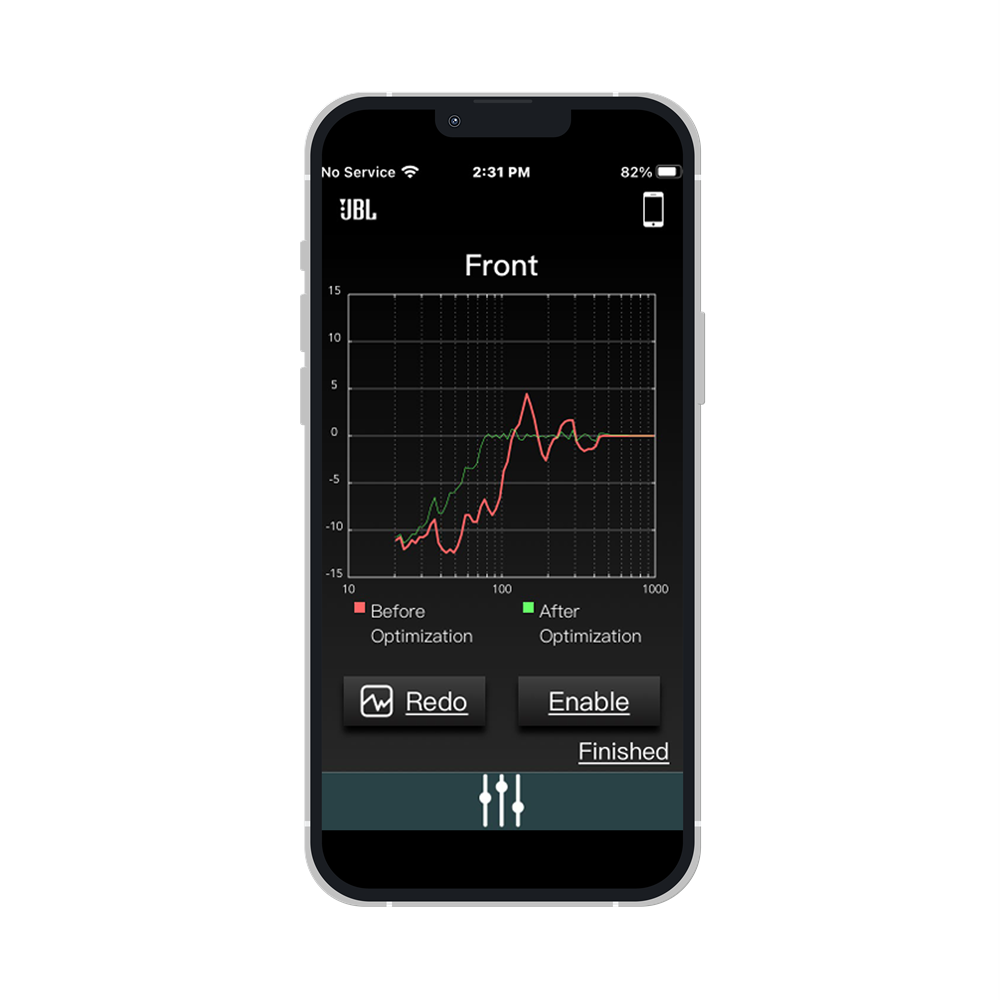

• EZ Set EQ: Yes
• Front channel bi-amp: Yes
• Digital signal processing: up to 24-bit/192kHz
• Mains voltage: 240V, 50Hz
• Max. power consumption: 700W
• Standby power consumption: <0.5W


Audio Spec:

• Channels: 7.2
• FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)125W
• Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)125 W RMS
• Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)175 W RMS

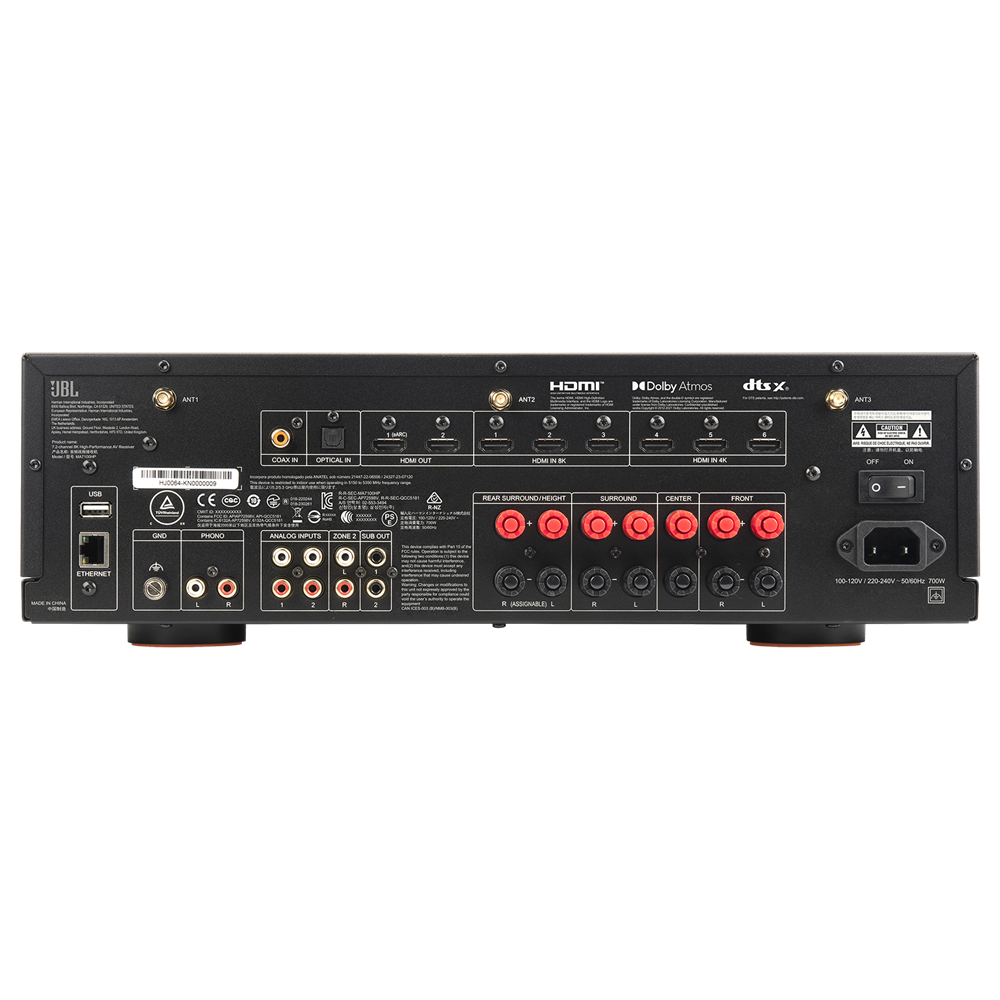

Control and Connections:

• HDMI Input/Output: 6/ 2
• Wi-Fi: Yes (2.4/5GHz)
• Bluetooth receiver: Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)
• Bluetooth transmit: Yes
• Digital Audio Input: 1 Coax, 1 Optical, 1 USB
• Stereo analogue input: 2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground
• Pre-Out: (single ended RCA)Stereo Zone 2, Subwoofer 1, Subwoofer 2
• Ethernet: RJ45 Gigabit, WiFi Onboard

Dimensions:

• Dimensions incl. feet and speaker terminals (H x W x D) 135.0mm x 432.0mm x 396.4mm
• Weight: 7.4kg
