Martin Logan Abyss 8 Inch Subwoofer

Product Overview

Introducing the modern Abyss Series subwoofers: engineered with a unique Hybrid Woofer System, these subwoofers deliver "supercharged" performance in a sleek, compact design. By enhancing performance and minimising their footprint, the new Abyss Series redefines what you expect from a subwoofer, offering unparalleled sound quality in a miniaturised size.

These subwoofers pack an extensive feature list and impressive power into a stylish, super compact, room-friendly design, delivering performance completely unexpected from their size. With technologies including built-in wireless signal connection, advanced Anthem Room correction, anti-vibration feet, and easy-to-use app control, Abyss Series subwoofers offer incredible performance and flexibility.

Abyss subwoofers utilise a Hybrid Woofer System, pairing two custom-designed aluminium passive radiators with an active aluminium woofer. This driver layout provides the increased output and lower distortion of a ported design while maintaining the more compact sizing and tighter bass typically associated with a sealed design.

While much more difficult to design and engineer, this Hybrid system gives Abyss Series subwoofers the benefits of both sealed and ported designs all in one. This powerful woofer system is backed by the brains of the Vojtko DSP engine, whose best-in-class 500MHz DSP with 64bit processing provides the intelligence needed to control the advanced technologies and up to 1000W of Magnitude® amplification on board. This combination allows Abyss's diminutive footprint to deliver enhanced low frequency output and distortion free detail retrieval.

Key Features

• Triple 8" Hybrid Woofer System consisting of a 1 high excursion, anodized-aluminium cone in stamped steel basket, 2 anodized-aluminium cone passive radiators
• Magnitude® MT-1kW Amplifier with 500w RMS (1,000w peak)
• Frequency response 23-200 Hz ±3 dB (Anechoic via LFE input)
• Precision-crafted, sealed MDF enclosure featuring a robust 1" thick MDF structure with reinforced woofer baffles and centre brace

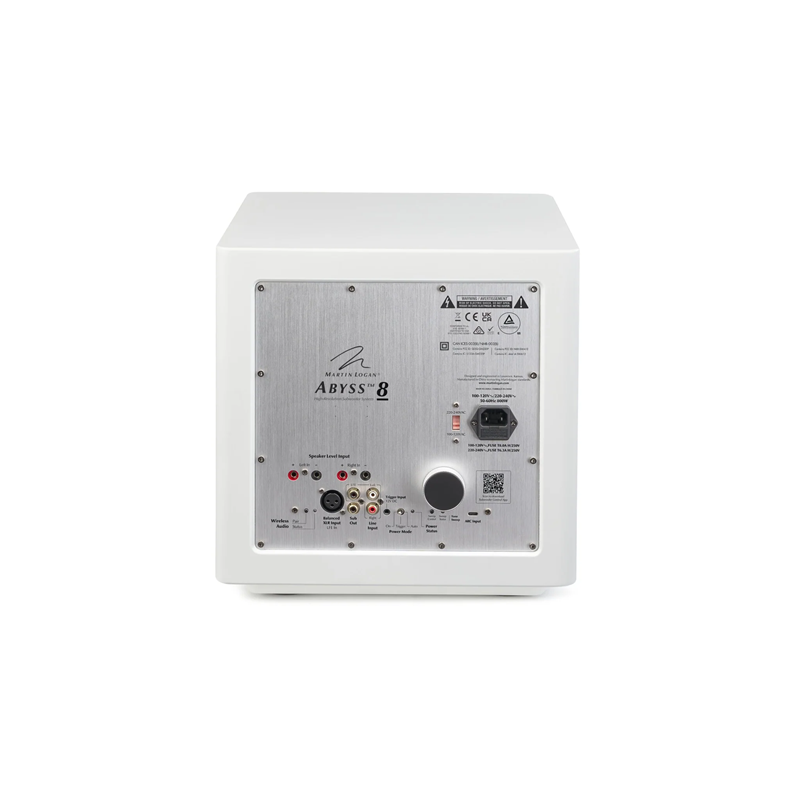

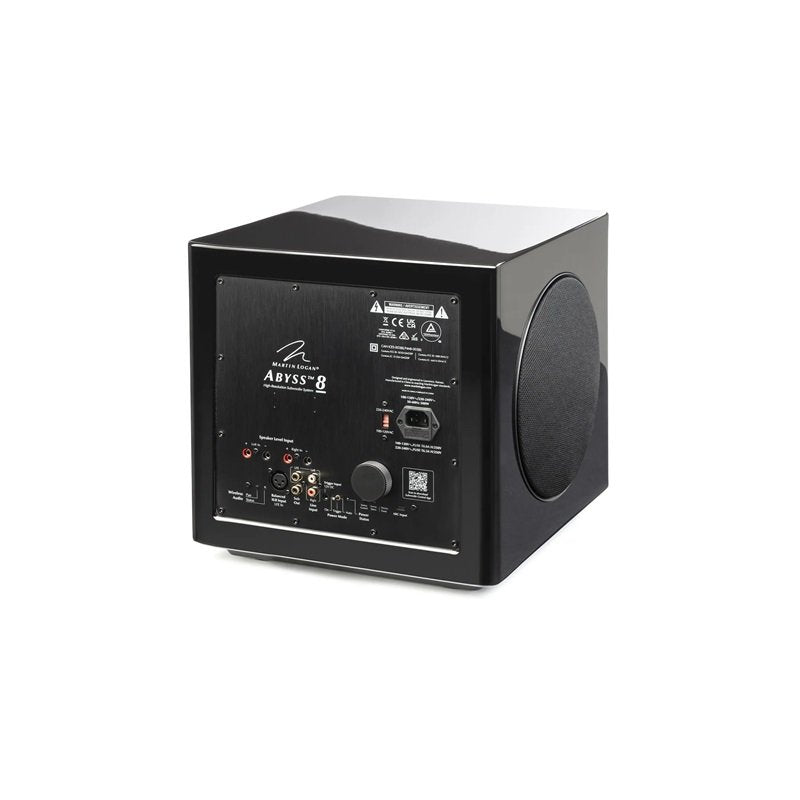

• Line Level: L+R, & LFE XLR: LFE Speaker Level: L+R (requires banana plugs)
• Wireless Input Integrated Wireless Receiver, Wireless Transmitter Included
• Anthem Room Correction Compatible: Requires ARC Mic a PC or Mac (sold separately)
• Dimensions: (HxWxD) 343mm x 335mm x 335mm Weight: 21.2 kg
• Finish: Gloss Black or Satin White
